SD8A840PA-HNF-SL

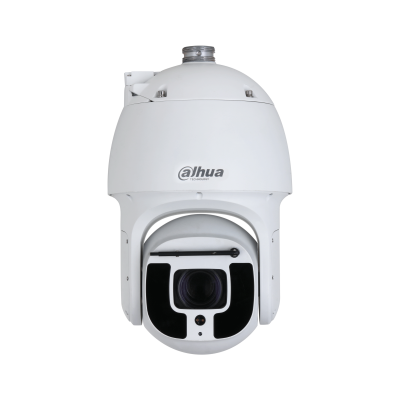

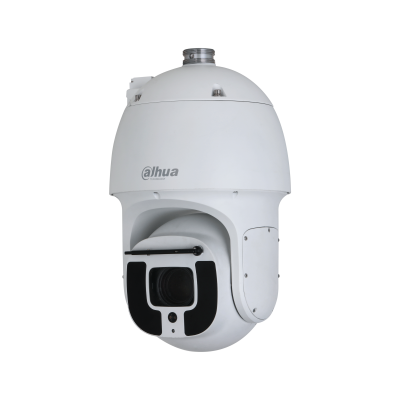

8MP 40× Anti-corrosion WizMind PTZ Camera
Key Points

1.High quality imaging with 8 MP resolution

2.40× optical zoom provide close up views over expansive areas

3.500m IR illumination distance to realize 24/7 monitoring of different scenes

4.Built-in innovative AI algorithm CPU, the camera support Auto Tracking 3.0, perimeter protection, video metadata and face recognition

5.Support optical defog, more details can also be seen on foggy days

6.Anti-corrosion coating and with NEMA-4X certification

Sales Enquiry
Datasheet
Specifications

Camera

Image Sensor

1/1.8″ CMOS

Pixel

8 MP

Max. Resolution

3840 (H) × 2160 (V)

ROM

8 GB

RAM

2 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 Lux@F1.4
B/W: 0.0005 Lux@F1.4
0 Lux (IR light/laser on)

Illumination Distance

500 m (1640.42 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Smart IR; Off

Illuminator Number

10 (IR)

Wiper

Smart wiper

Lens

Focal Length

5.6 mm–223 mm

Max. Aperture

F1.4–F4.5

Field of View

H: 63.9°–2.0° V: 37.3°–1.1° D: 71.2°–2.3°

Optical Zoom

40×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.5 m–2 m (1.64 ft–6.56 ft)

Iris Control

Auto

DORI Distance

Detect

Observe

Recognize

Identify

4400 m (14435.70 ft)

1740 m (5708.66 ft)

880 m

(2887.14 ft)

400 m (1312.34 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –30° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°–240°/s
Tilt: 0.1°–100°/s

Preset Speed

Pan: 240°/s
Tilt: 120°/s

Preset

300

PTZ Protocol

DH-SD
Pelco-P/D (auto recognition)

Intelligence

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; tracking; optimization; capturing pictures; uploading high-quality face snapshots.
Motor vehicle attributes: License plate, plate color, vehicle type, vehicle color, vehicle logo, vehicle model, sunshield, seatbelt, smoking, calling, ornament, and annual inspection mark.
Non-motor vehicle attributes: Type, color, number of people, top type and color, helmet.
Human body attributes: Top/bottom type and color, bag, hat, gender, and umbrella.
Face attributes: Gender, age, expressions, glasses, mouth mask, beard.

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking

Face Recognition

Support face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement. Support attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache; Support face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, quality first. Support 5 face databases; register one by one or in batches; support face recognition similarity settings and face comparison on the basis of 10,000 face databases.

Video

Video Compression

H.264H; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+

Resolut
