SDT4E425-8P-GB-A-PV1-SL

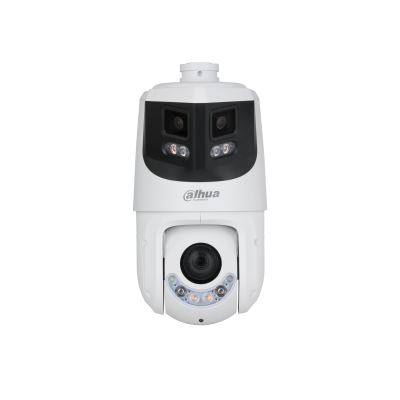

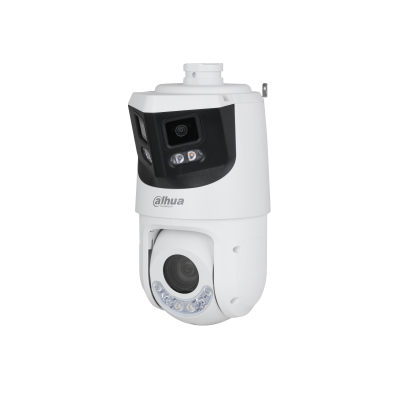

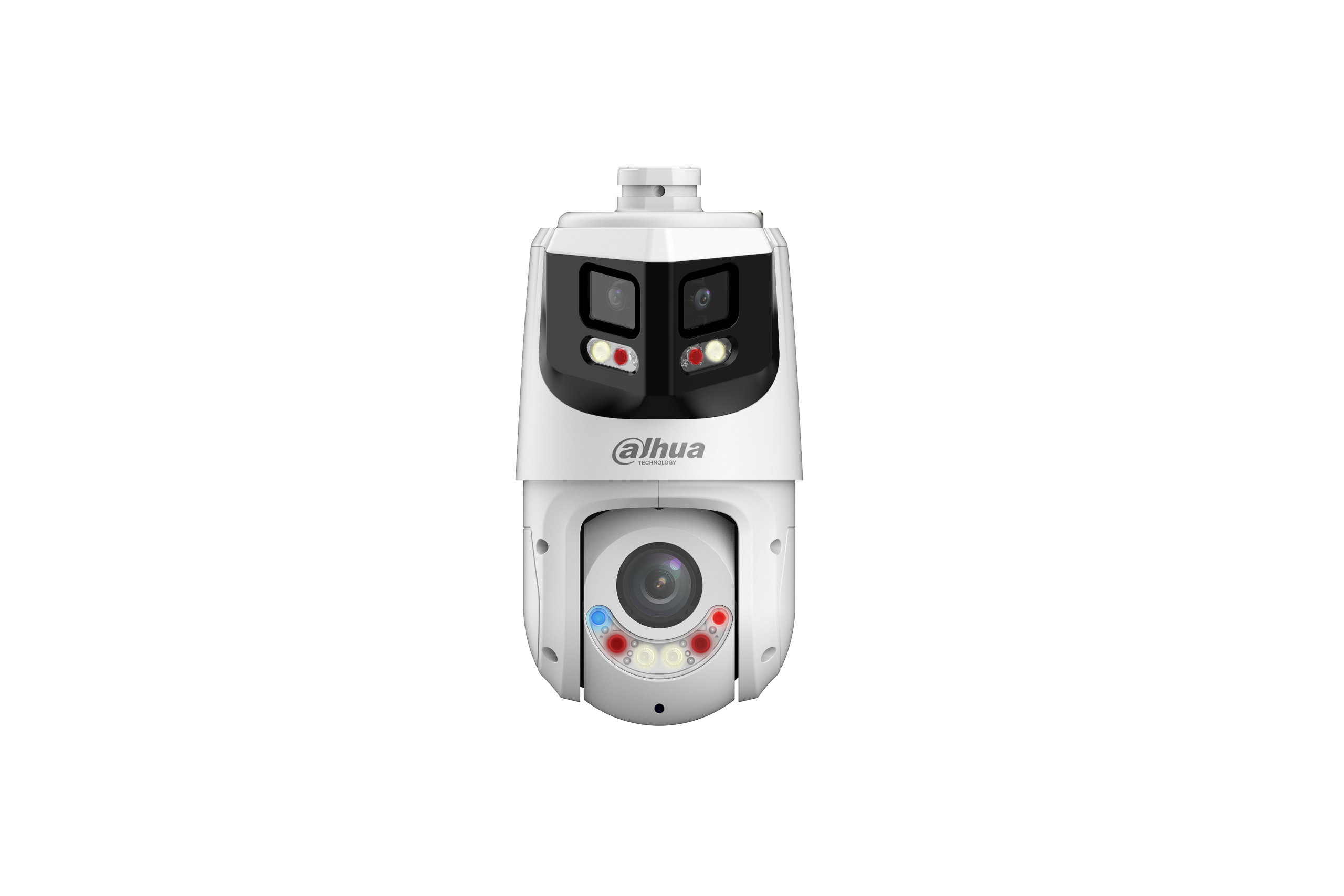

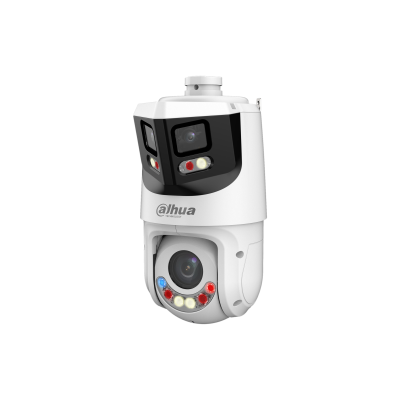

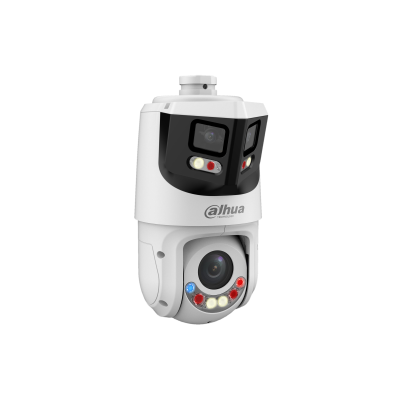

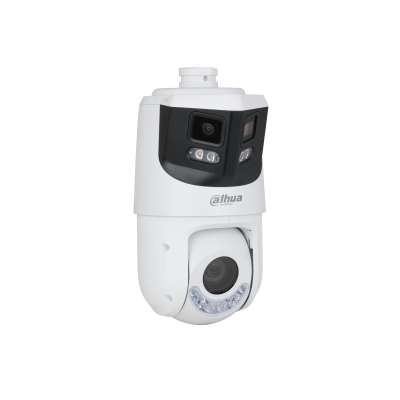

8+4MP 25x TiOC Network Panoramic PTZ Camera
Key Points

Captures a Large Area and Great Details at the Same Time

High-Quality Imaging with 8MP Resolution for Bullet Channel, 4MP for PTZ Channel

180° Wide Angle Splicing Image Monitoring

Auto Tracking 3.0：Effective Target Monitoring with Detailed Intruder Trajectories

Active Deterrence: Audible and Visual Alarms Can Be Triggered by Certain Events to Drive Away the Target

IP66 and Anti-Corrosion Design for Reliable Protection

Sales Enquiry
Datasheet
Specifications

Camera

Image Sensor

Overview channel: 1/2.7″ CMOS; Detail channel: 1/2.8″ CMOS

Pixel

Overview channel: 8 MP; Detail channel: 4 MP

Max. Resolution

Overview channel: 4096 (H) × 1860 (V); Detail channel: 2560 (H) × 1440 (V)

ROM

Overview channel: 4 GB; Detail channel: 4 GB

RAM

Overview channel: 2 GB; Detail channel: 1 GB

Electronic Shutter Speed

1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Overview channel:
0.005 lux@F1.4 (Color, 30 IRE);
0.0005 lux@F1.4 (B/W, 30 IRE);
0 lux (illuminator on)
Detail channel:
0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)

Illumination Distance

Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light); Detail channel: 100 m (328.08 ft) (IR); 50 m (131.23 ft) (white light)

Illuminator On/Off Control

Overview channel:
Manual; Auto; Off
Detail channel:
Zoom Prio; Manual; Auto; Off

Illuminator Number

Overview channel: 2 (IR light); 2 (White light); Detail channel: 2 (IR light); 2 (Warm light)

Lens

Focal Length

Overview channel: 2.8 mm; Detail channel: 5 mm–125 mm

Max. Aperture

Overview channel: F1.4; Detail channel: F1.6-F3.6

Field of View

Overview channel: H: 180°; V: 86°; Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°

Optical Zoom

Overview channel: NA; Detail channel: 25×

Focus Control

Auto; manual; semi-auto

Close Focus Distance

Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33″–1.64″)

Iris Control

Overview channel: NA; Detail channel: Auto; manual; iris prio

DORI Distance

Detect

Detect

Observe

Recognize

Identify

Overview channel:

2.8 mm

56.0 m (183.72 ft)

22.4 m (73.49 ft)

11.2 m

(36.74 ft)

5.6 m

(18.37 ft)

Detail channel:

W

100.0 m (328.08 ft)

40.0 m (131.23 ft)

20.0 m

(65.62 ft)

10.0 m

(32.81 ft)

Detail channel:

T

2500.0 m (8202.00 ft)

1000.0 m (3280.80 ft)

500.0 m

(1640.40 ft)

250.0 m

(820.20 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–180°/s;
Tilt: 0.1°/s–90°/s

Preset Speed

Pan: 0.1°/s–180°/s;
Tilt: 0.1°/s–90°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking

SMD

SMD 4.0

Active Deterrence

Light Warning

Red-Blue light warni
