SDZW2000T-SL

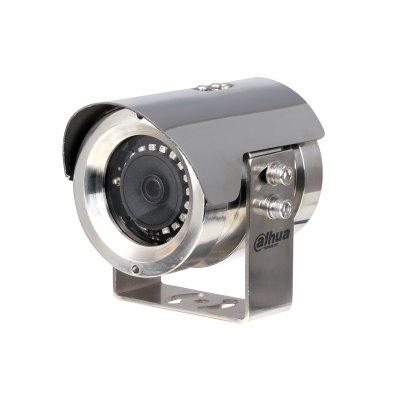

2MP Anti-corrosion IR Network Camera
Key Points

High-Quality Imaging with 2MP Resolution

Efficient H.265 Compression for Reduced Bandwidth and Storage

Deep Learning-Based Human and Vehicle Classification

IP68 and IK10 Protection, Suitable for Outdoor Environments

Supports 316L Stainless Steel, Anti-Corrosion Design for Reliable Protection

Sales Enquiry
Datasheet
Specifications

Camera

Image Sensor

1/2.8” STARVIS™ CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

Scanning System

Progressive

Electronic Shutter Speed

1/3s~1/100,000s

Minimum Illumination

Color: 0.005Lux@F2.1; B/W: 0.0005Lux@F2.1; 0Lux@F2.1 (IR on)

S/N Ratio

More than 50dB

IR Distance

30m (98ft)

IR On/Off Control

Auto/Manual

IR LEDs

18

Lens

Focal Length

3.6mm / 6mm

Max. Aperture

F2.1 / F2.0

Angle of View

3.6mm: H: 87°, V: 48°

6mm: H: 51°, V: 30°

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Lens

Detect

Observe

Recognize

Identify

3.6mm

55m(180ft)

22m(72ft)

11m(36ft)

6m(20ft)

6mm

81m(266ft)

33m(108ft)

16m(52ft)

8m(26ft)

Intelligence

Event Trigger

Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal Access,

Auto Tracking

N/A

IVS

Tripwire, Intrusion, Abandoned/Missing

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/720P(1280× 720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream: 1080P/1.3M/720P(1 ~ 50/60fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 1080P/720P/D1(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265/H.264: 448K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detection

Support

Region of Interest

Support

Electronic Image Stabilization (EIS)

N/A

Defog

N/A

Digital Zoom

16x

Flip

180°

Privacy Masking

Support

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage), Local PC for instant recording

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm I/O

N/A

Electrical

Power Supply

DC12V/1.5A, PoE(802.3af)

Power Consumption

5W (IR on)

Environmental

Operating Conditions

-40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH

Ingress Protection

IP68

Vandal Resistance

IK10

Construction

Casing

316L stainless steel

Dimensions

Φ152mm × 101mm × 107.5mm

Net Weight

2kg(4.41lb)

Gross Weight

2.27Kg(5.01lb)
