SD60432DB-HNY-SL

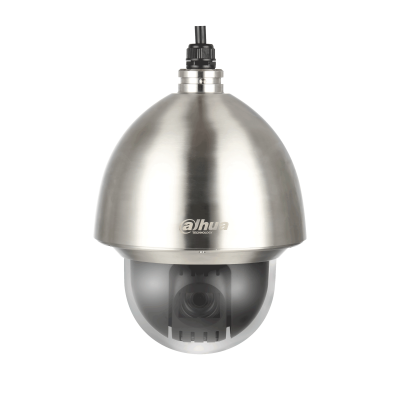

4MP 32x Starlight Anti-corrosion WizSense PTZ Camera
Key Points

High-Quality Imaging with 4MP Resolution

32x Optical Zoom Provides Detailed Long-Range Surveillance

Face Detection：Leveraging Facial Data to Enhance Analytics Accuracy

Deep Learning-Based Human and Vehicle Classification

IP68 and IK10 Protection, Suitable for Outdoor Environments

Supports 316L Stainless Steel, Anti-Corrosion Design for Reliable Protection

Sales Enquiry
Datasheet
Specifications

Camera

Image Sensor

1/2.8″ CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

512 MB

Electronic Shutter Speed

1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE)

Lens

Focal Length

4.8 mm–154 mm

Max. Aperture

F1.6–F4.0

Field of View

H: 55.8°–2.3°; V: 31.9°–1.3°; D: 63.7°–2.7°

Optical Zoom

32 ×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1m-1.5 m (0.33 ft-4.92 ft)

Iris Control

Auto; manual

DORI Distance

Detect

Observe

Recognize

Identify

3080.0 m

(10104.99 ft)

1216.6 m (3991.47 ft)

616 m

(2021.00 ft)

308 m (1010.50 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless;
Tilt: –20° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°–300° /s;
Tilt: 0.1°–150° /s

Preset Speed

Pan: 0.1°–600° /s;
Tilt: 0.1°–500° /s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern; Preset; Scan; Tour

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving;

parking detection; people gathering; vehicle/human alarm classification

Face Detection

Supports face detection, snapshot, and face enhancement;
Supports face cutout: Face, one-inch photo;
Capturing strategies include real-time capturing and quality first.

SMD

SMD3.0

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480)

Video Frame Rate

Main stream: 4M/1080p/1.3M/720p@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
Sub stream 2: 720p@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 96 Kbps–14,848 Kbps
H.265: 38 Kbps–8,960 Kbps

Day/Night

Auto (ICR); Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic Image Stabilization (EIS)

Defog

Electronic

Digital Zoom

16 ×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view;
8 colors available

S/N Ratio

≥ 55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; MPEG2-Layer; G722.1; PCM

Netw
