PTZ83440-HNF-PA

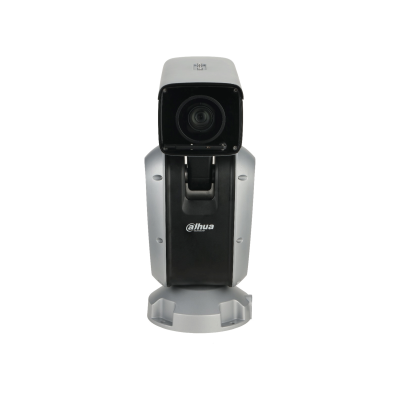

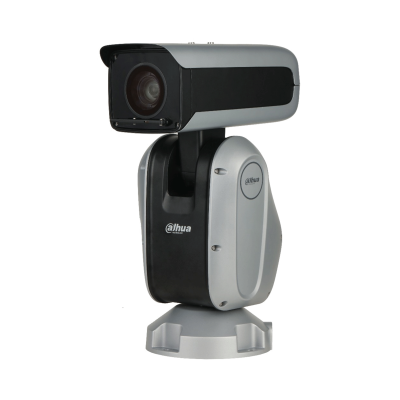

4MP 40× Starlight IR AI Network Positioning System
Key Points

High-Quality Imaging with 4MP Resolution

40× Optical Zoom Provide Close Up Views Over Expansive Areas

1/1.8″ CMOS Sensor Ensures Premium Images

Expansive Night View With up to 350 m IR Distance for 24/7 Monitoring

Face Recognition: Supports Face Information Collection, Property Expression Fetching, Face Database Management and Comparison

Video Metadata: Multi-Target Detection and Analysis with Real-Time Tracking

Auto Tracking 3.0：Effective Target Monitoring with Detailed Intruder Trajectories

IP67 for Protection Against Harsh Environments

Sales Enquiry
Datasheet
Specifications

Camera

Image Sensor

1/1.8″ CMOS

Pixel

4MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

8 GB

RAM

2 GB

Electronic Shutter Speed

1/1–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.001 Lux@F1.4
B/W: 0.0001 Lux@F1.4
0 Lux (IR light on)

Illumination Distance

350 m (1148.29 ft)

Illuminator On/Off Control

Zoom Prio; Manual; Smart IR; Off

Illuminator Number

10 (IR light)

Wiper

Yes

Lens

Focal Length

5.5 mm–220 mm

Max. Aperture

F1.4–F4.5

Field of View

H: 61.8°–2.2°
V: 36.3°–1.3°
D: 69.2°–2.4°

Optical Zoom

40×

Focus Control

Auto; Semi-Auto; Manual

Close Focus Distance

0.5 m–2.0 m (1.64 ft–6.56 ft)

Iris Control

Auto

DORI Distance

Detect

Observe

Recognize

Identify

3034.5 m (9955.71 ft)

1204.2 m (3950.79 ft)

606.9 m (1991.14 ft)

303.4 m (995.41 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –45° to +90°

Manual Control Speed

Pan: 0.1°–160°/s
Tilt: 0.1°–60°/s

Preset Speed

Pan: 160°/s
Tilt: 60°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

Protocol

DH-SD

Intelligence

Video Metadata

Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.

IVS (Perimeter Protection)

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Recognition

Yes

Auto Tracking

Yes

Video

Compression

H.264; H.264H; H.265; MJPEG (Sub Stream); Smart H.265+; Smart H.264+

Streaming Capability

3 streams

Resolution

4 M (2560 × 1440); 1080p (1920 × 1080); 1.3 M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)

Video Frame Rate

Main stream: 4 M/1080p/1.3 M/720p (1–50/60 fps)

Sub stream 1: D1/CIF (1–25/30 fps)

Sub stream 2: 1080p/1.3 M/720p (1–25/30 fps)

Bit Rate Control

CBR; VBR

Bit Rate

Default resolution of the main stream:
H264: 512–13056 Kbps
H265: 204–7936 Kbps

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; Indoor; Outdoor; Tracking; Manual; Sodium lamp; Natural light; Street lamp

Gain Control

Auto; Manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Optical

Image Stabilization

Electronic Image Stabilization (EIS)

Digital Zoom

16×

Image Rotation

180°
