PTZ37225-HNP-GB-A-EG

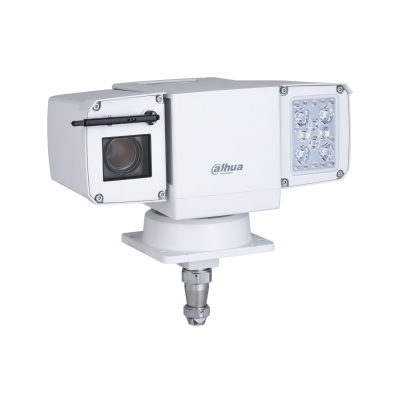

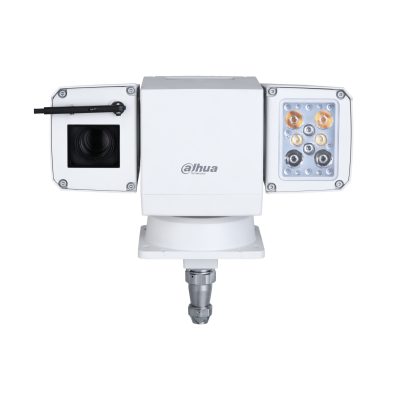

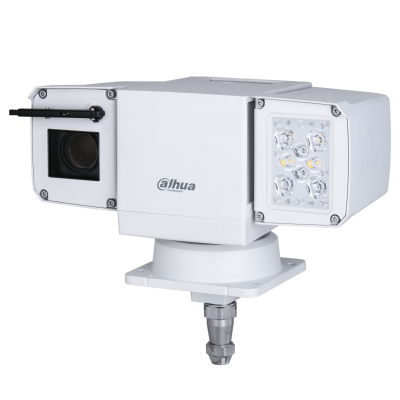

2MP 25× Starlight IR Posittoning System
Key Points

2MP STARVIS™ CMOS Ensures Clear Imaging In Low Light

25x Optical Zoom Provides Detailed Long-Range Surveillance

150m IR And 50m White Light Enable 24/7 Monitoring

AI-Powered Auto-Tracking 30 Improves Target Detection

Wide Rotation Range (–90° To 90°) Expands Coverage

Portable Design Simplifies Installation And Transportation

Advanced IVS Supports Perimeter Protection And Job Monitoring

High-Precision PT Unit Enables Substation Inspection Tasks

Sales Enquiry
Datasheet
Specifications
Camera
Lens
PTZ
Intelligence
Video
Audio
Network
Port
Power
Environment
Structure
Camera
Image Sensor 1/2.8″ CMOS
Pixel 2 MP
Max. Resolution 1920 (H) × 1080 (V)
ROM 4 GB
RAM 1 GB
Electronic Shutter Speed 1/1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux@F1.6 (IR/white light on)
Illumination Distance 50 m (164.04 ft) (white light); 150 m (492.13 ft) (IR)
Illuminator On/Off Control Zoom Prio; Manual; Smart IR; Off
Illuminator Number 4 (IR)
4 (white light)
Wiper Wiper
Lens
Focal Length 4.8 mm–120 mm
Max. Aperture F1.6–F3.5
Field of View H: 58.5°–2.8°
V: 33.2°–1.5°
D: 67.5°–3.2°
Optical Zoom 25×
Focus Control Auto; semi-auto; manual
Close Focus Distance 0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control Auto; manual
DORI Distance
Lens
Detect
Observe
Recognize
Identify
W
66.2 m
( 217.21 ft)
26.5 m
( 86.88 ft)
13.2 m
( 43.44 ft)
6.6 m
( 21.72 ft)
T
1655.2 m
( 5430.29 ft)
662.1 m
( 2172.12 ft)
331.0 m
( 1086.06 ft)
165.5 m
( 543.03 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
PTZ
Pan/Tilt Range Pan: 0° to 360° endless
Tilt: –90° to +90°
Manual Control Speed Pan: 0.1°/s–158°/s
Tilt: 0.1°/s–53°/s
Preset Speed Pan: 100°/s
Tilt: 93.75°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan 5
Power-off Memory Yes
Idle Motion Preset;Pattern;Tour;Scan
PTZ Protocol DH-SD
Pelco-P/D (Auto recognition)
Intelligence
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; linkage tracking
Face Detection Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.
Construction Monitoring Detects safety helmets that are red, orange, yellow, blue, white or black, and triggers alarms when people fail to wear their safety helmet or are wearing the wrong one.
Supports uniform detection. You can upload up to 5 sample work uniform databases which support importing as many as 1,000 images in JPG format (1080p). When the similarity level between the detected uniform and the uniform sample in the database is too low, alarms are triggered.
