IPC-HDW3649QM-S-IL

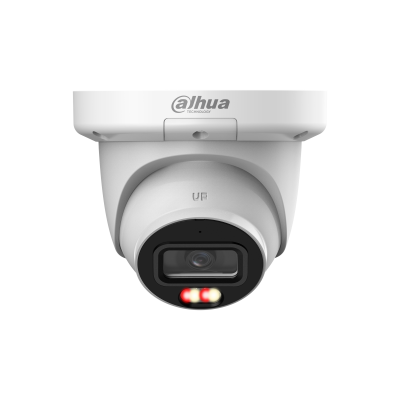

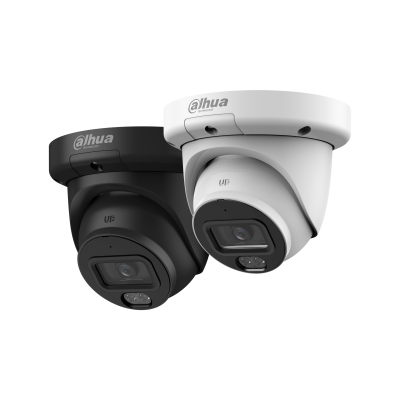

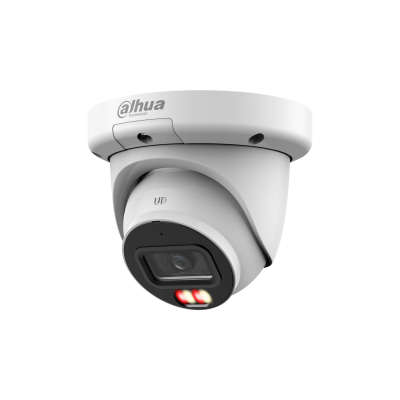

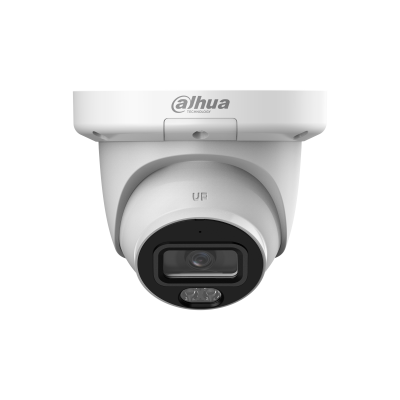

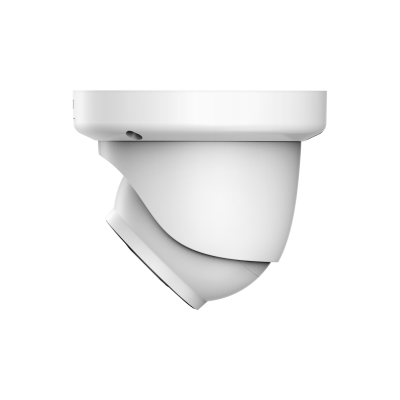

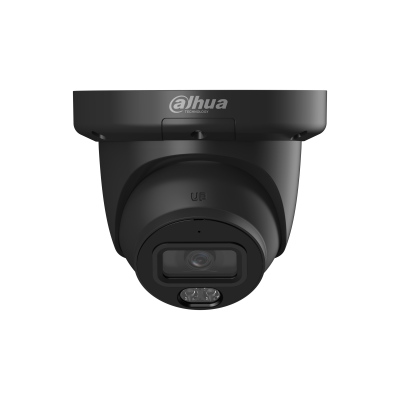

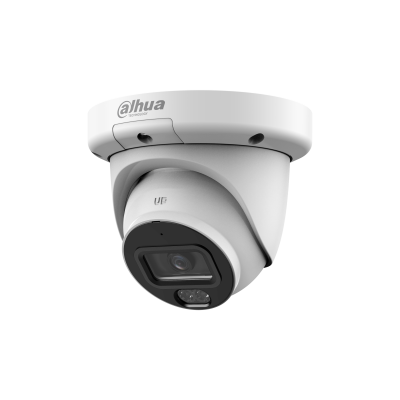

6MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
Key Points

High-Quality Imaging with 6 MP Resolution

Smart Dual Light: Built-in IR and LED Lights with 3 Illumination Modes Supported

Enhanced Deep Learning-Based Human and Vehicle Classification

Xinghan Vision Models: Comprehensive Enhancement of Target Detection, Imaging

AcuPick Enables Fast and Precise Human&Vehicle Search

Built-in Mic for Real-Time Audio Security

IP67 for Protection Against Harsh Environments

Sales Enquiry
Datasheet
Specifications
Camera
Lens
Intelligence
Video
Audio
Alarm
Network
Certification
Power
Environment
Structure
Camera
Image Sensor 1/2.7″ CMOS
Max. Resolution 3288 (H) × 1850 (V)
ROM 256 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto;Manual
Illuminator Number 2 (Multi-core (IR + warm) light)
Angle Adjustment Pan: 0°–360°
Tilt: 0°–80°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.4
Field of View 2.8 mm: H: 110°; V: 58°; D: 132°
3.6 mm: H: 86°; V: 49°; D: 100°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.4 m (4.59 ft)
3.6 mm: 1.9 m (6.23 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
84.8 m
( 278.22 ft)
33.9 m
( 111.22 ft)
17.0 m
( 55.77 ft)
8.5 m

( 27.89 ft)
3.6 mm
98.7 m
( 323.82 ft)
39.5 m
( 129.59 ft)
19.7 m
( 64.63 ft)
9.9 m

( 32.48 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Face Detection (Full Image) Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
AI Coding AI H.265; AI H.264
*includes SmartCodec Technology，Smart H.264+ /H.265+
Video Frame Rate Main stream: 3288 × 1850@(1–25/30 fps)
Sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability 3 streams
Resolution 6M (3288 × 1850/3200 × 1800); 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480
